1. The characteristics :
Oil seal edge, elastomer
The sealing lip short and soft with spring
With dustproof lip
Resistance to pressure oil seal, of a whole in the larger diameter
used under high pressure
Used for sealing pressure situations
2. Operating conditions
Pressure: ≤ 50Mpa
Temperature: -35~+110° C
Speed: Maximum reciproing speed
Media: Mineral oil-based hydraulic fluids,
Flame retardant hydraulic fluids
3. Material
Material: Profile seal: NBR
Back-up Ring: Polyester elastomer
4. NFK HIGH-QUALITY SEALS MANUFACTURING EXPERTS:
. Professional team more than 20 years,Professional service and
perfect packaging make the seal kit high quality looking and
enhance your profit .
. Good quality and Good Price
. Our Companies have agent Japan N O K brand with Taiwan DINGZING
qualifiions, professional sales oil seal and a large number of
inventory.
. Construction machinery industry, injection molding machine industry,
metallurgical industry, the press industry, engineering machinery
oil cylinder factory,
5. Product egories
Piston seal : TDE TPM TPL PDE PDP TTU TTD TTE TRU SPGW SPGO SPG SPGA NCF ODI OSI OUIS OHM OKH DAS OK SELA OUY D-8
Rod Seal :TSE TLI TTH TTI TTS IDI IUH ISI IUIS D-2 D-3 D-6
U Seal : UPI UPH USH USI V99F V96H UN
Buff Seal : HBTS HBY HBTTS D-14
Wiper Seal : DKB DKBI DKBI3 DKBZ DKI , DWI DKH DWIR DSI LBI LBH VAY DH ME-2 ME-8
Wearing Ring : WR KZT RYT
Rotary Seal : ROI D-14 SPN
Back Up Ring : N4W BRT-PTFE BRT-NYLON BRT2 BRT3 BRT-G BRT-P BRN2 BRN3
O Ring : Oring Kit P series G series AS series S series M 1.5
series M 2.0 series M 1.9series M 2.4 series
M 3.0 series M4.0
| EXCAVATOR SEAL REPAIR KIT |
| BOOM CYL' SEAL KIT | HYDAULIC PIMP SEAL KIT | SERVO VALVE SEAL KIT | MAIN PIMP SEAL KIT |
| ARM CYL' SEAL KIT | PIOLVE VALVE SEAL KIT | O RING BOX | SOLENOID VALVE SEAL KIT |
| BUCKET CYL' SEAL KIT | CONTROL VALVE SEAL KIT | BREAKER SEAL REPAIR KIT | BREAKER SEAL REPAIR KIT |
| ADJ CYLINDER SEAL KIT | PUMP PLUNGE SEAL KIT | BREAKER SEAL REPAIR KIT | DRILLING RIG SEAL REPAIR KIT |
| CENTER JIONT KIT | GEAR PUMP SEAL KIT | CRANE SEAL REPAIR KIT | CONCRETE TRAILER PUMP SEAL KIT |
| SWING MOTOR SEAL KIT | AV SEAL KIT | GRADER SEAL REPAIR KIT | CRAWLER BULLDOZER SEAL KIT |
| TRAVEL MOTOR SEAL KIT | ROCK BREAKER SEAL KIT | LOADER SEAL REPAIR KIT | AERRIAL LADDER TRUCK SEAL KIT |
| SERVO VALVE SEAL KIT | MAIN PIMP SEAL KIT | | |
| NS RIF. | ALTRI RIF. | DIMENSIONI SEDI / HOUSING DIMENSIONS | | | NS RIF. | ALTRI RIF. | DIMENSIONI SEDI / HOUSING DIMENSIONS | | |
| Our ref. | Other references | D | d | H | Our ref. | Other references | D | d | H |
| TDE 1000 | 098047 | 25.00 | 12.00 | 12.40 | TDE 1023 | 433354 | 110.00 | 90.00 | 25.40 |
| TDE 1001 | 118066 | 30.00 | 17.00 | 15.40 | TDE 1023/1 | 450350 | 114.30 | 88.90 | 32.15 |
| TDE 1002 | 137086 | 35.00 | 22.00 | 15.40 | TDE 1024 | 452354 | 115.00 | 90.00 | 22.40 |
| TDE 1003 | 157094 | 40.00 | 24.00 | 18.40 | TDE 1025 | 472374 | 120.00 | 95.00 | 22.40 |
| TDE 1004 | 177114 | 45.00 | 29.00 | 18.40 | TDE 1026 | 472393 | 120.00 | 100.00 | 25.40 |
| TDE 1004/1 | 196118 | 50.00 | 30.00 | 25.40 | TDE 1027 | 492393 | 125.00 | 100.00 | 25.40 |
| TDE 1005 | 196133 | 50.00 | 34.00 | 18.40 | TDE 1028 | 492393/1 | 125.00 | 100.00 | 32.40 |
| TDE 1006 | 216153 | 55.00 | 39.00 | 18.40 | TDE 1029 | 492413 | 125.00 | 105.00 | 25.40 |
| TDE 1007 | 236173/1 | 60.00 | 44.00 | 18.50 | TDE 1029/1 | 500400 | 127.00 | 101.60 | 32.15 |
| TDE 1007/1 | 236173/2 | 60.00 | 44.00 | 20.00 | TDE 1030 | 511413 | 130.00 | 105.00 | 25.40 |
| TDE 1008 | 248185 | 63.00 | 47.00 | 19.40 | TDE 1031 | 531433 | 135.00 | 110.00 | 25.40 |
| TDE 1009 | 255196 | 65.00 | 50.00 | 18.40 | TDE 1032 | 551452 | 140.00 | 115.00 | 25.40 |
| TDE 1010 | 275196 | 70.00 | 50.00 | 22.40 | TDE 1033 | 551472 | 140.00 | 120.00 | 25.40 |
| TDE 1011 | 295216 | 75.00 | 55.00 | 22.40 | TDE 1034 | 570472 | 145.00 | 120.00 | 25.40 |
| TDE 1012 | 295220 | 75.00 | 56.00 | 24.40 | TDE 1035 | 590472 | 150.00 | 120.00 | 38.40 |
| TDE 1012/1 | 300225 | 76.20 | 57.15 | 22.40 | TDE 1036 | 590492 | 150.00 | 125.00 | 25.40 |
| TDE 1013 | 314236 | 80.00 | 60.00 | 22.40 | TDE 1037 | 610511 | 155.00 | 130.00 | 25.40 |
| TDE 1014 | 326248 | 83.00 | 63.00 | 22.40 | TDE 1038 | 629511 | 160.00 | 130.00 | 25.40 |
| TDE 1015 | 334255 | 85.00 | 65.00 | 22.40 | TDE 1038/1 | 638511 | 162.00 | 130.00 | 25.40 |
| TDE 1016 | 354275 | 90.00 | 70.00 | 22.40 | TDE 1039 | 669551 | 170.00 | 140.00 | 25.40 |
| TDE 1016/1 | 354275/1 | 90.00 | 70.00 | 25.40 | TDE 1039/1 | 700600 | 177.80 | 152.40 | 32.15 |
| TDE 1017 | 374295 | 95.00 | 75.00 | 22.40 | TDE 1040 | 708629 | 180.00 | 160.00 | 31.40 |
| TDE 1018 | 393295 | 100.00 | 75.00 | 22.40 | TDE 1041 | 708590 | 180.00 | 150.00 | 35.40 |

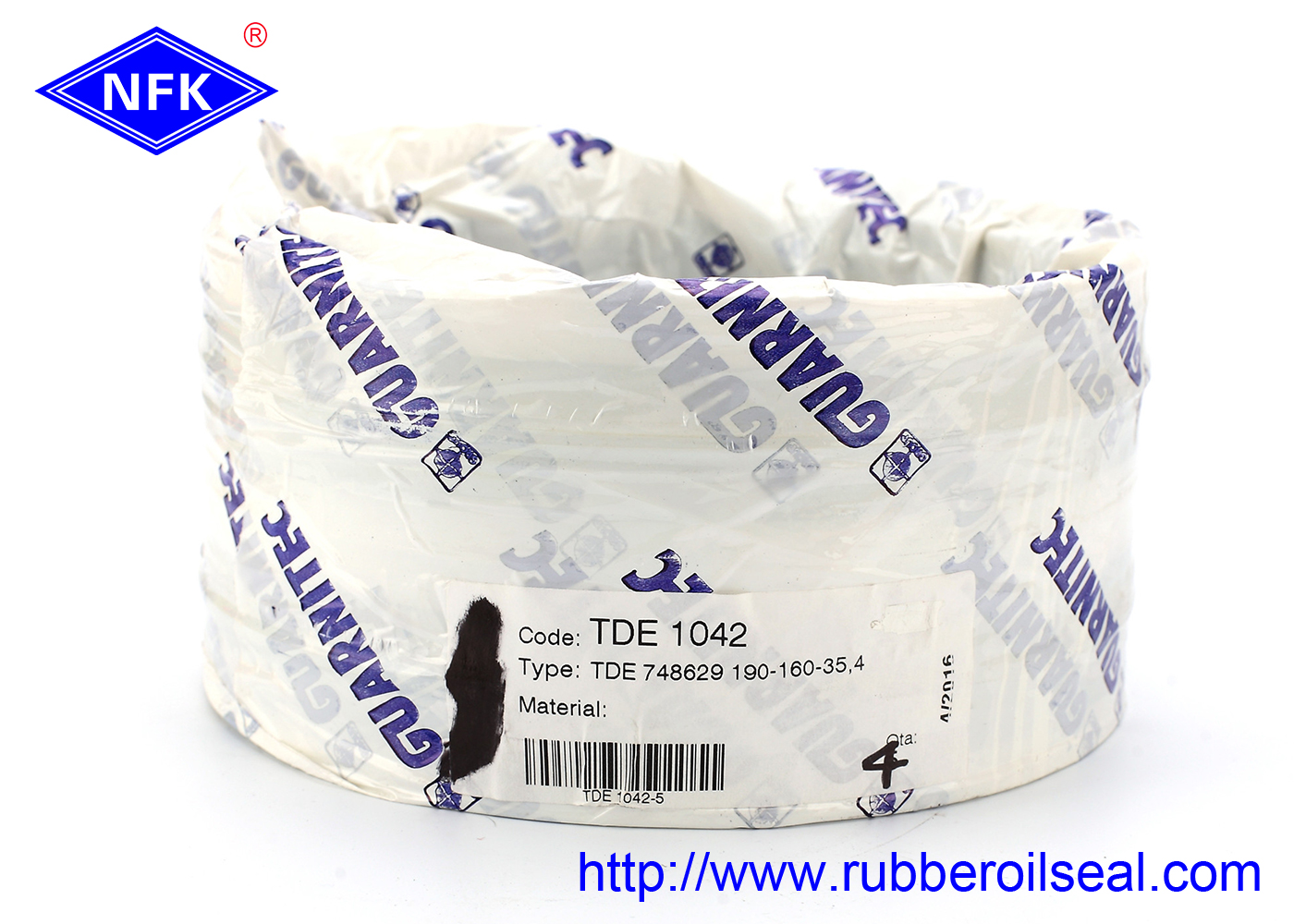

| TDE 1019 | 393314 | 100.00 | 80.00 | 25.40 | TDE 1042 | 748629 | 190.00 | 160.00 | 35.40 |
| TDE 1019/1 | 400325 | 101.60 | 82.55 | 24.21 | TDE 1043 | 787669 | 200.00 | 170.00 | 35.40 |
| TDE 1020 | 413314 | 105.00 | 80.00 | 22.40 | TDE 1044 | 826708 | 210.00 | 180.00 | 32.40 |
| TDE 1021 | 433334/1 | 110.00 | 85.00 | 22.40 | TDE 1045 | 866748 | 220.00 | 190.00 | 35.40 |
| TDE 1022 | 433334 | 110.00 | 85.00 | 25.40 | TDE 1046 | 984866 | 250.00 | 220.00 | 35.40 |
6. Since the cost of the spare parts is related to the quantity,
volume, packing requirements and value of the accessories, the
delivery problem is based on the principle of customer negotiation.
With regard to the freight unit, the company shall arrange the
delivery units, such as the convenience of receiving the goods and
the economic benefits of the freight, etc., or the company shall
provide the usual freight units. Regarding the payment method, the
freight forwarder supports the payment. Not to pay, confirm the
freight, and the user
7. FAQ
Q1 The pictures you saw here may not be related to the real
products. Please contact us for more details if you want to check
products.
A. In order to give you fast and accurate pricing information, we
need some details about the machine
Q2: How long is your delivery time?
A: Generally it takes 15 days if we have stock.
Otherwise it takes about 10-15days depending on the qty.
Q3: Do you have a minimum order requirement?
A: Small trial order is acceptable.
Q4: What are your payment terms ?
A: T/T, Western Union, .
Q5:To which places have you exported?
North America, Europe, Middle East, Africa, Southeast Asia and so
on.
Q6: How to guarantee your after sales service?
1. Strict inspection during production
2. Recheck the products before shipment to ensure our packaging in
good condition
3. Track and receive feedback from our customer
Q7: Could you supply solutions to us?
A: Sure we can.
WELCOME YOUR ENQUIRY!!!
