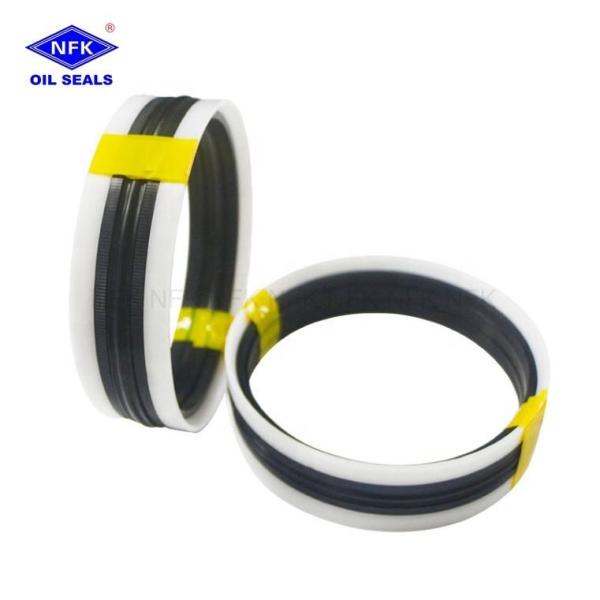

Rubberoilseal Piston Combination Seal TPS 354299 393338 433377
472417 492425 TECNOLAN TECNOTEX GUARNITEC
1. Operating conditions
Pressure / Speed : 40 (MPa) /0.5m/s
Temperature: NBR -30℃~+110℃; FKM :-20℃~ 200 ℃
Produc Features: **Easy to install **High wear resistance **High
compression resistance **Low deformation
Speed: Maximum reciproing speed
Types : Combination seal ,Rubber oil seal,Hydraulic Seal
Media: Mineral oil-based hydraulic fluids,
Flame retardant hydraulic fluids
Main sales area :Africa, South America, Southeast Asia, North
America, Northeast Asia, Middle East

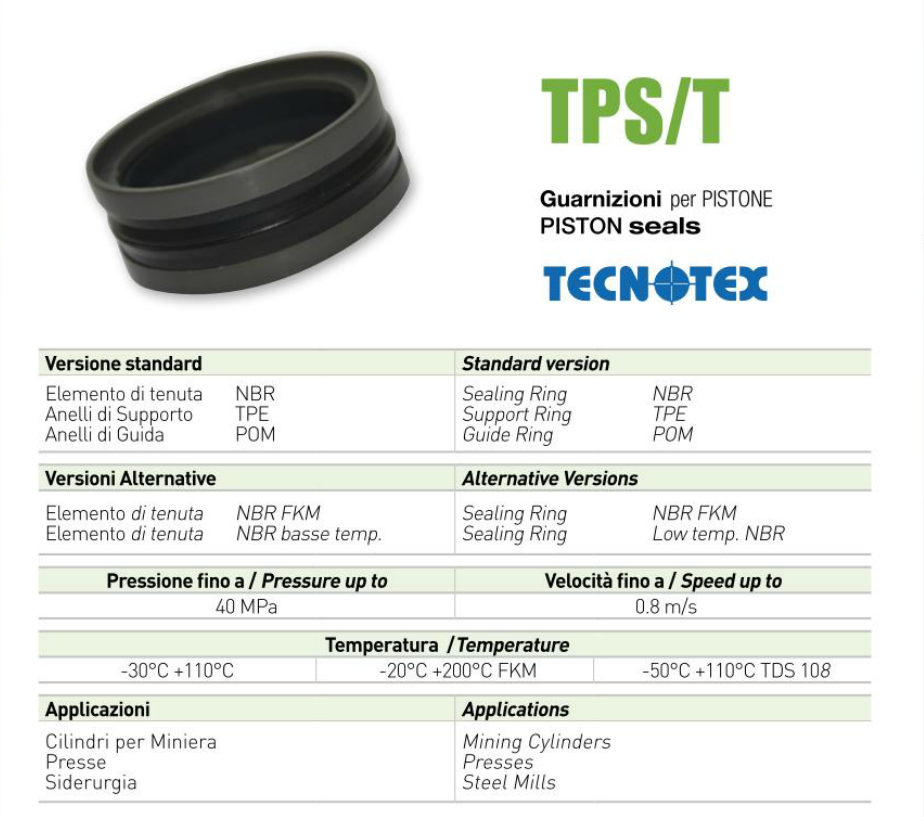

2. Material
Material: Profile seal: NBR
Back-up Ring: Polyester elastomer
Guide rings: POM
3....About us
Our company specializes in sale of seal repair kits for
high-altitude mechanical equipment cranes, forklifts, stackers,
cranes, forklifts, container cranes, quay crane equipment and other
port machinery and equipment ;The seals use the original brand:
American PARKER, Germany CFW (MERKEL, SIMRIT ), British HALLITE,
American MPI, Italian TECNOLAN.
Seal repair kits include: lift cylinder repair kit, telescopic oil
cylinder repair kit, luffing oil cylinder repair kit, side shift
oil cylinder repair kit, twist lock oil cylinder repair kit, etc.
The existing original factory seals can meet most of the current
port machinery, ship terminal machinery, mining machinery,
municipal machinery and other equipment
Kalmar (Sweden Kalmar), Fantuzzi (Italy Qantas), CVS (Italy
Ferrari), PPM (France), Sisu (Finland), etc.
Forklift brands are: TCM, LINDE (Linde), HYSTER (Hyster), MITSUBISH
(Mitsubishi), KONECRANES (Konecranes SMV), etc.
4....Our inventory series products includes of brand oil seal :
Pump truck accessories Italy TECNOLAN TDE50 piston combination seal
Product egory
Piston seal: TDE TPM TPL TPS TPG PDE PDP TTU TTD TTE TRU SPGW SPGO
SPG SPGA SPF NCF ODI OSI OUIS OHM OKH DAS OK SELA OUY D-8
Rod Seal: TSE TLI TTH TTI TTS IDI IUH ISI IUIS D-2 D-3 D-6
U-seal: UPI UPH USH USI V99F V96H UN
Buffer seal: HBTS HBY HBTTS D-14
Wiper seal: DKB DKBI DKBI3 DKBZ DKI, DWI DKH DWIR DSI LBI LBH VAY
DH ME-2,ME-8
Wear ring: WR KZT RYT
Rotating seal: ROI D-14 SPN
Spare ring: N4W BRT-PTFE BRT-NYLON BRT2 BRT3 BRT-G BRT-P BRN2 BRN3
O-ring: Oring kit P series G series AS series S series M 1.5 series
M 2.0 series M 1.9 series M 2.4 series
M 3.0 series M4.0
Common pressure oil seals: SC, SB, TC, TB, VC, VB, DCY, TC4Y, TC4,
TB4, DC, DB, VR, MG, OKC3,HSCL,HTC ,HTC9L,HTGL,KC
High pressure oil seal: TCV, TCN TCZ ,TCN-6, TZ TCHD, TCHD-1
,ISPID, 15Z, 15Z-3...
5. TPS SIZE SERIES TABLE
| NS RIF. | ALTRI RIF. | | | DIMENSIONI SEDI / Housing dimensions | | | | |
| Our ref. | Other ref. | D | d | H | S | h | M | F |
| TPS 9501 | 098066 | 25.00 | 17.00 | 13.50 | 3.20 | 6.00 | 21.00 | 24.40 |
| TPS 9501/1 | 098055 | 25.00 | 14.00 | 13.50 | 3.20 | 6.00 | 21.00 | 24.40 |
| TPS 9502 | 118086 | 30.00 | 22.00 | 13.50 | 3.20 | 6.00 | 26.00 | 29.40 |
| TPS 9502/1 | 118075 | 30.00 | 19.00 | 13.50 | 3.20 | 6.00 | 26.00 | 29.40 |
| TPS 9503 | 125094 | 32.00 | 24.00 | 15.50 | 3.20 | 6.00 | 28.00 | 31.40 |
| TPS 9503/1 | 125083 | 32.00 | 21.00 | 15.50 | 3.20 | 6.00 | 28.00 | 31.40 |
| TPS 9504 | 137106 | 35.00 | 27.00 | 15.50 | 3.20 | 6.00 | 31.00 | 34.40 |
| TPS 9504/1 | 137094 | 35.00 | 24.00 | 15.50 | 3.20 | 6.00 | 31.00 | 34.40 |
| TPS 9505 | 157125 | 40.00 | 32.00 | 15.50 | 3.20 | 6.00 | 36.00 | 39.40 |
| TPS 9505/1 | 157114 | 40.00 | 29.00 | 15.50 | 3.20 | 6.00 | 36.00 | 39.40 |
| TPS 9506 | 177145 | 45.00 | 37.00 | 15.50 | 3.20 | 6.00 | 41.00 | 44.40 |
| TPS 9507 | 196149 | 50.00 | 38.00 | 20.50 | 4.20 | 6.00 | 46.00 | 49.40 |
| TPS 9507/1 | 216175 | 55.00 | 43.00 | 20.50 | 4.20 | 6.00 | 51.00 | 54.90 |
| TPS 9508 | 236188 | 60.00 | 48.00 | 20.50 | 4.20 | 6.00 | 56.00 | 59.40 |
| TPS 9509 | 248200 | 63.00 | 51.00 | 20.50 | 4.20 | 6.00 | 59.00 | 62.40 |
| TPS 9509/1 | 255208 | 65.00 | 53.00 | 20.50 | 4.20 | 6.00 | 61.00 | 64.40 |
| TPS 9510 | 275228 | 70.00 | 58.00 | 20.50 | 4.20 | 6.00 | 66.00 | 69.40 |
| TPS 9510/1 | 295248 | 75.00 | 63.00 | 20.50 | 4.20 | 6.00 | 71.00 | 74.40 |
| TPS 9511 | 314259 | 80.00 | 66.00 | 22.50 | 5.20 | 6.00 | 76.00 | 79.40 |
| TPS 9511/1 | 334279 | 85.00 | 71.00 | 22.50 | 5.20 | 6.00 | 81.00 | 84.40 |
| TPS 9512 | 354299 | 90.00 | 76.00 | 22.50 | 5.20 | 6.00 | 86.00 | 89.40 |
| TPS 9513 | 393338 | 100.00 | 86.00 | 22.50 | 5.20 | 6.00 | 96.00 | 99.40 |
| TPS 9514 | 433377 | 110.00 | 96.00 | 22.50 | 5.20 | 6.00 | 106.00 | 109.40 |
| TPS 9515 | 472417 | 120.00 | 106.00 | 22.50 | 5.20 | 6.00 | 116.00 | 119.40 |
| TPS 9516 | 492425 | 125.00 | 108.00 | 26.50 | 7.20 | 6.00 | 121.00 | 124.40 |
| TPS 9516/1 | 511445 | 130.00 | 113.00 | 26.50 | 7.20 | 6.00 | 126.00 | 129.40 |
| TPS 9516/2 | 531464 | 135.00 | 118.00 | 26.50 | 7.20 | 6.00 | 131.00 | 134.40 |
| TPS 9517 | 551480 | 140.00 | 123.00 | 26.50 | 7.20 | 6.00 | 136.00 | 139.40 |
| TPS 9518 | 590523 | 150.00 | 133.00 | 26.50 | 7.20 | 6.00 | 146.00 | 149.40 |
| TPS 9519 | 629562 | 160.00 | 143.00 | 26.50 | 7.20 | 6.00 | 156.00 | 159.40 |
| TPS 9520 | 708641 | 180.00 | 163.00 | 26.50 | 7.20 | 6.00 | 176.00 | 179.40 |
| TPS 9521 | 787708 | 200.00 | 180.00 | 31.50 | 9.20 | 6.00 | 196.00 | 199.40 |
| TPS 9522 | 866787 | 220.00 | 200.00 | 31.50 | 9.20 | 6.00 | 216.00 | 219.40 |
| TPS 9523 | 984905 | 250.00 | 230.00 | 31.50 | 9.20 | 6.00 | 246.00 | 249.40 |

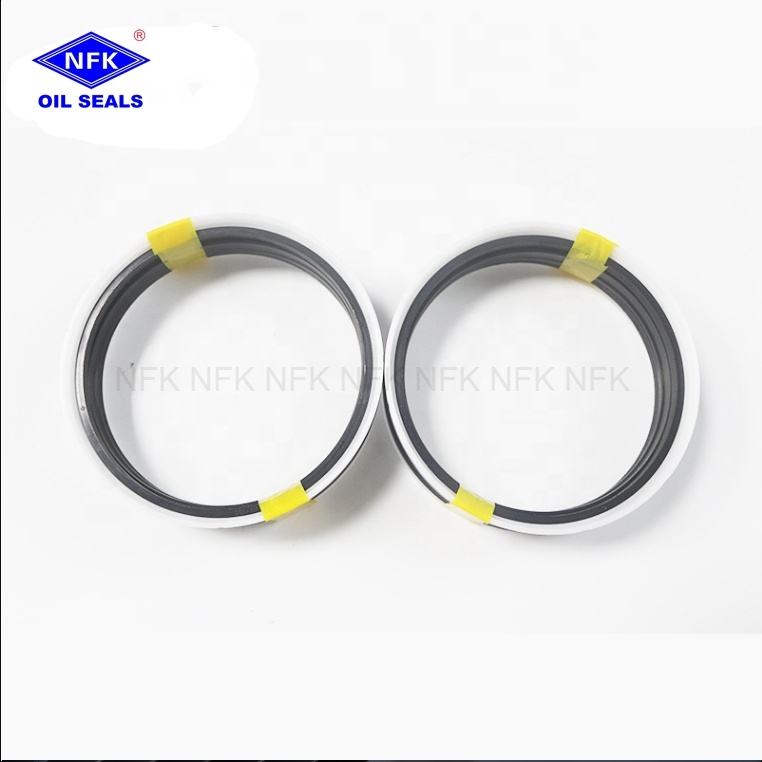

6. Picture viewing
Can you call us to discuss your questions when you have time?
Please call 86 13924029131 whatsapp(wechat ).
We believe you will find some oilseals & repair kits in our product
. We are confident that our products can meet your needs in various
ways.
Please let us know if you want to deal with Solve the problem of
seals further. look forward to hearing from you.
7. FAQ
Q1: The pictures you saw here may not be related to the real
products. Please contact us for more details if you want to check
products.
A. In order to give you fast and accurate pricing information, we
need some details about the machine
Q2:To which places have you exported?
North America, Europe, Middle East, Africa, Southeast Asia and so
on.
Q3: How long is your delivery time?
A: Generally it takes 5-7 days if we have stock.
Q4: The pictures you saw here may not be related to the real products.
Please contact us for more details if you want to check products.
A. In order to give you fast and accurate pricing information, we
need some details about the machine engine/appliion and the part
number of the part you want. And, size and pictures will be better
if you are not sure about it. We can check and help you with it.
Q5: How to guarantee your after sales service?
1. Strict inspection during production
2. Recheck the products before shipment to ensure our packaging in
good condition
3. Track and receive feedback from our customer
Q6: Could you supply solutions to us?
A: Sure we can.Q6: Do you have a minimum order requirement?A: Small trial order is acceptable.
If there is any need ,please feel free to write to ask ,We will
send our picture book for you if you are interested in our alogues.
Thanks!
